Choosing the right WiFi antenna is essential for reliable and efficient wireless communication. Whether you are using it for personal or business purposes, the performance of your wireless network heavily depends on the antenna. In this article, we will provide you with eight essential tips to help you choose the right WiFi antenna for your needs and environment.

Understand the Different Types of WiFi Antennas

Omni-directional antennas are commonly used in home WiFi routers and access points. They radiate the WiFi signal in a 360-degree pattern, providing coverage in all directions. This makes them ideal for situations where the WiFi device needs to provide coverage to multiple areas in different directions, such as in the center of a room or on the ceiling.

What Is a Dipole Antenna and How Does It Provide Coverage?

A dipole antenna is one of the most common types of omnidirectional antennas you’ll encounter in WiFi applications. Structurally, it consists of two identical conductive elements, typically rods or wires, aligned end to end. When wireless signals pass through a dipole antenna, it emits radio frequency energy evenly in a 360-degree horizontal pattern—imagine standing still and tossing bits of confetti in every direction at once.

This broad, donut-shaped coverage makes dipole antennas especially suitable for indoor environments like homes and offices, where you want consistent WiFi access all around a central location. Think of placing a dipole antenna in the center of a room: it will provide reliable connection to all devices within its range, whether they’re in the corners or moving about.

Dipole antennas excel in point-to-multipoint communication because they can connect with numerous devices in different directions at the same time. And while their primary use is indoors, you’ll occasionally find them on rooftops, providing symmetrical coverage to adjacent buildings or open areas.

Directional antennas, on the other hand, focus the WiFi signal in a specific direction. They have a narrow beamwidth, meaning they provide a concentrated signal in one direction while minimizing signal spread in other directions. These antennas are often used in point-to-point or point-to-multipoint setups, where the WiFi signal needs to be sent over a long distance or directed to a specific location. For example, directional antennas are commonly used in outdoor WiFi setups to connect buildings or to provide WiFi to a specific area, like a park or a campground.

When it comes to directional antennas, there are several types to consider based on your coverage needs:

• Highly Directional Antennas: These are designed for long-distance, point-to-point communication. They offer high gain and produce a very focused, narrow beam—think of a spotlight rather than a floodlight. Two common examples are parabolic (dish) antennas and grid antennas. Dish antennas resemble the satellite dishes you might see on rooftops, though often much larger for WiFi applications. Grid antennas, which look like a grill, are particularly suited for outdoor environments with higher wind loads, making them a popular choice for bridging networks between distant buildings.
• Sector Antennas: Sector antennas combine several highly directional antennas, each covering a “pie-shaped” sector, to provide broader coverage. Mounted high above the ground and angled for optimal terrain coverage, sector antennas are often used in scenarios where omni-directional antennas would waste signal upward or into unwanted areas. Because sector antennas work together, they can cover large areas efficiently and can deliver higher throughput, as multiple antennas are transmitting and receiving at once. These are commonly found in large-scale applications like cell towers and sports venues.

Choosing between these different directional antenna types depends on whether you need to bridge a long-distance gap (such as between two buildings), cover a targeted outdoor area, or provide reliable signal to many users spread out over a wide sector.

How Sector Antennas Compare to Omnidirectional Antennas

Sector antennas offer a unique approach to WiFi coverage compared to traditional omnidirectional antennas. Instead of broadcasting the signal evenly in every direction, sector antennas use multiple directional elements arranged to create broad, customizable coverage across specific zones. Each element covers a “slice” of the area—much like cutting a pie—allowing network designers to target coverage where it’s needed most.

These antennas are often mounted high and angled downward, which allows each sector to be fine-tuned based on the shape of the terrain or layout of the site. For example, in larger outdoor environments or multi-building campuses, sector antennas can be aimed to blanket all necessary areas without wasting signal in useless directions, such as up into the sky or into obstacles. By contrast, if you tilt an omni antenna down, you lose coverage on the opposite side and risk sending signal where no devices are present.

Sector setups can also provide greater overall throughput than a single omni antenna. Since each sector is essentially a separate antenna, your network can serve more devices efficiently and reduce congestion. This makes sector antennas a popular choice for large venues, outdoor hotspots, or any scenario that requires both targeted coverage and enhanced performance.

When to Use Semi-Directional Antennas

Semi-directional antennas offer a focused signal that is perfect for environments where coverage is needed in a specific direction but not as narrowly as with full directional antennas. Think of them as the spotlight compared to an omni’s lantern—they shine the WiFi signal where you need it most, reducing wasted coverage and minimizing interference.

These antennas shine in settings like:

• Campus environments: Where you need to bridge two buildings across a quad or connect separate structures without blanketing the entire area.
• Long corridors and aisles: In places like warehouses, libraries, hospitals, or big-box retail stores, where shelves or walls would usually block an omni-directional signal. Mounting a patch or panel antenna high up and pointing it down a hallway ensures strong, consistent coverage along that specific path.
• Outdoor areas with defined targets: If you want to extend coverage down a city street, parking lot, or between sections of a park, semi-directional antennas keep the signal strong in the desired direction without spilling over to unnecessary areas.

Common types such as patch/panel antennas work well indoors for forward-reaching coverage, while Yagi antennas are often used outdoors to connect spaces that would be tough for an omni-directional antenna to reach.

In short, environments that benefit from semi-directional antennas typically have physical barriers, long linear spaces, or a need to connect distinct points without broadcasting everywhere in between. Selecting this antenna type helps you target your WiFi where it matters most, enhancing both coverage and overall network performance.

The choice of WiFi antenna depends on the specific requirements of your WiFi setup. If you need coverage in all directions, an omni-directional antenna is the best choice. If you need to extend the WiFi signal in a specific direction, a directional is more suitable.

When to Choose Semi-Directional Antennas Over Omnidirectional

While omni-directional antennas are perfect when you need uniform coverage in every direction, there are situations where a more focused approach is necessary. Semi-directional antennas step in when you want to concentrate your WiFi signal on a specific area or path rather than blanket an entire space.

These antennas are particularly useful in environments where you need to connect two separate locations or cover long, narrow areas where omni-directional antennas fall short. For instance, if you’re setting up WiFi between buildings on a campus or extending coverage down a lengthy hallway, warehouse aisle, or row of library stacks, a semi-directional antenna like a patch, panel, or Yagi may be the right tool for the job.

Patch and panel antennas typically excel indoors, mounted high on a wall to effectively direct the signal down corridors or between shelving. Their focused beam reduces signal loss and limits interference in adjacent areas. Yagi antennas, with their higher gain and longer reach, are better suited for outdoor scenarios—think bridging WiFi between two remote offices or covering distance across parking lots that an omni-directional antenna can’t handle.

To summarize, choose a semi-directional antenna instead of an omni-directional one when:

• You need to send a strong signal from one point to another, especially over a medium distance.
• The environment includes obstacles or layouts—like warehouses, hospitals, or retail spaces—that block or scatter signals coming from all directions.
• You want to minimize interference and keep your wireless coverage tightly focused in a specific area.

By matching your antenna type to your environment, you’ll enjoy stronger, more reliable WiFi exactly where you need it.

What Is a Sector Antenna and How Does It Differ?

Another specialized type of WiFi antenna is the sector antenna. Unlike omni-directional antennas that broadcast signals evenly in all directions, sector antennas divide coverage into multiple “sectors,” each focused on a specific slice of the area.

A sector antenna consists of several directional antennas arranged side by side, with each one covering a pie-shaped wedge. By strategically angling and overlapping these sectors, it’s possible to achieve broad coverage over an area—without wasting signal in unwanted directions. For example, sector antennas are often mounted high up on towers or rooftops, with each unit aimed at a different portion of the landscape. This ensures efficient coverage for large outdoor spaces, such as stadiums, campuses, or expansive industrial sites.

Key Differences Between Sector and Other Antenna Types:

• Targeted Coverage: Sector antennas allow you to control where the signal goes, covering specific sections without overspill, while omni-directional antennas broadcast evenly in all directions.
• Greater Capacity: Because multiple antennas work together, sector antennas can support higher data throughput and more users in dense environments.
• Flexible Deployment: Tilting each sector antenna individually allows for customized coverage, which isn’t possible with a single omni-directional antenna.

Commonly, sector antennas are used in cellular base stations and large public venues where managing and optimizing wireless capacity over different areas is critical. By contrast, omni-directional and single-point directional antennas suit smaller or more uniform coverage requirements.

Explore the Role and Uses of Semi-Directional Antennas

Semi-directional antennas serve as a middle ground between omni-directional and highly directional antennas. They focus wireless signals in a specific direction, but not as narrowly as a true directional antenna. Think of their coverage like a streetlight illuminating a section of road: you get a strong, focused signal in your intended area, but with a broader beam than ultra-narrow options.

These antennas are especially useful for bridging short to medium distances, both indoors and outdoors. For example, in settings like campuses, semi-directional antennas can connect two buildings without excessive signal spillover to unnecessary areas. They’re also practical in spaces with natural signal barriers—such as long hallways, rows of shelving, or stacks you might find in warehouses, libraries, or retail stores. By mounting a patch or panel antenna high on a wall and aiming it along an aisle or corridor, you deliver coverage exactly where it’s needed, reducing wasted signal and interference.

Common varieties include patch or panel antennas (typically used indoors to radiate forward along a defined path) and yagi antennas (often mounted outdoors to extend coverage across greater distances). By choosing the right model and placement, you can efficiently extend reliable WiFi coverage into hard-to-reach spaces where an omni-directional antenna might struggle.

Comparing Patch/Panel and Yagi Antennas

Patch/Panel and Yagi antennas are both considered semi-directional antennas, but they serve different purposes and are best suited for specific environments.

Patch/Panel Antennas:
Patch or panel antennas are typically installed indoors and are designed to send the WiFi signal forward into a defined area. Their radiation pattern is broad—often up to 180 degrees horizontally—making them ideal for covering spaces like long hallways, aisles, or areas with rows of shelving. You’ll commonly find these antennas in places such as warehouses, retail stores, hospitals, or libraries, where obstacles can block the signal from an omni-directional antenna. By mounting the patch/panel antenna high on a wall and aiming it into the desired space, you can achieve focused coverage with less interference in unintended areas.

Yagi Antennas:
In contrast, Yagi antennas are generally used outdoors and have a much narrower beam focus. They excel at transmitting signals over longer distances, making them perfect for bridging WiFi between buildings or reaching remote locations that are out of range for omni or panel antennas. Their directional design minimizes interference from other directions and allows for a stronger connection between two fixed points.

In summary:

• Patch/Panel: Best for indoor use, wide horizontal coverage, great for hallways and rows.
• Yagi: Best for outdoor long-distance links, narrow focus, ideal for point-to-point connections between distant locations.

Explore Parabolic (Dish) and Grid Antennas

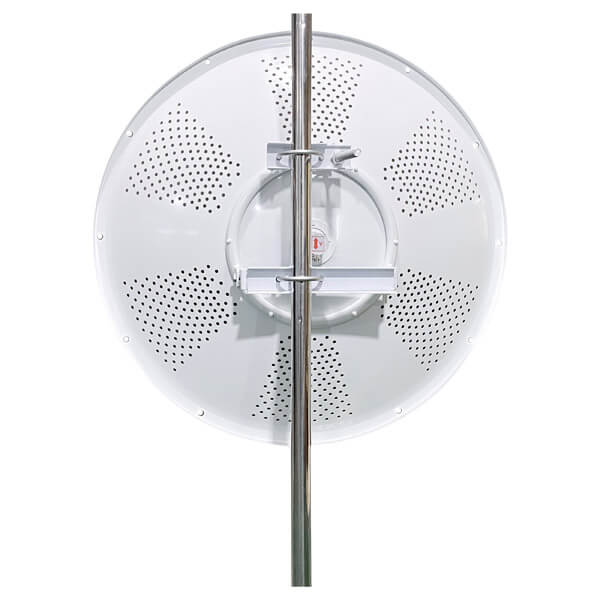

Parabolic, or “dish,” antennas are well-known for their distinctive curved shape, much like the satellite dishes you might see mounted on rooftops—though WiFi versions can range significantly in size. These antennas excel at focusing wireless signals into a narrow, powerful beam, making them perfect for long-distance, point-to-point links. Because of their high gain and precision, parabolic antennas are often chosen for outdoor links that need to span several kilometers, such as connecting office buildings on a campus or reaching remote facilities.

Grid antennas, in contrast, feature an open, mesh-like structure resembling a grill or lattice. This design not only keeps them lightweight but also reduces wind resistance, making them particularly suited for windy outdoor environments. Like dish antennas, grid antennas concentrate the signal in a specific direction, but their construction allows them to maintain performance even under challenging weather conditions. They are commonly used in rural areas or locations where strong winds could pose a problem for solid dish antennas.

Choosing between these two comes down to your specific needs—parabolic antennas are ideal when maximum range and pinpoint accuracy are required, while grid antennas balance focused signal delivery with enhanced durability for exposed installations.

Determine the Frequency Range

WiFi signals operate on different frequency bands, such as 2.4GHz, 5GHz, 6.4GHz or higher. It’s important to choose an antenna that is compatible with the frequency range of your WiFi router or access point.

Most WiFi antennas are designed to work with those frequency ranges, but it’s always a good idea to double-check the specifications to ensure compatibility.

Consider the Gain of the Antenna

The gain of a WiFi antenna refers to its ability to focus and amplify the signal. Antennas with higher gain can transmit and receive signals over longer distances. However, it’s important to note that higher gain antennas may also have a narrower coverage area.

If you need to cover a large area, a low gain antenna may be sufficient. But if you need to cover a long distance or have a lot of obstacles in the way, a higher gain antenna may be necessary.

Evaluate the Polarization and Beamwidth

Polarization and beamwidth are important factors to consider when evaluating antennas.

Polarization refers to the orientation of the electric field in an electromagnetic wave. In the case of WiFi signals, they can be vertically polarized or horizontally polarized.

When setting up a WiFi network, it is important to choose an antenna that matches the polarization of your devices. This is because the performance of the WiFi connection can be affected by the mismatch in polarization.

If your WiFi device has a vertically polarized antenna, it is recommended to use a vertically polarized antenna on your WiFi router or access point. Similarly, if your device has a horizontally polarized antenna, you should use a horizontally polarized antenna on your router or access point.

By matching the polarization of the antennas, you can ensure that the electric fields of the WiFi signals are aligned, which helps to maximize the signal strength and minimize interference.

Beamwidth refers to the angle at which the antenna radiates or receives the signal. It determines how wide or narrow the antenna’s signal is spread. For directional antennas, beamwidth is a crucial factor to consider. A narrow beamwidth concentrates the signal into a smaller area, making it ideal for long-distance, point-to-point connections. On the other hand, a wider beamwidth spreads the signal out over a larger area, making it better for covering larger regions.

When selecting an antenna, you need to consider the required beamwidth for your specific application. If you need to establish a long-range, point-to-point link, a narrow beamwidth is preferable. However, if you need to provide coverage over a larger area, a wider beamwidth is more suitable.

Check the Power Handling Capacity

The power handling capacity of an antenna refers to its ability to handle higher power levels without getting damaged. This is particularly important if you plan to use the antenna outdoors or in environments where the signal strength may vary.

Make sure to choose an antenna with a power handling capacity that matches your requirements to ensure optimal performance and durability.

Consider the weather resistance

If you plan to use the WiFi antenna outdoors, it’s important to choose one that is weather resistant. Look for antennas that are specifically designed for outdoor use and can withstand various weather conditions, such as rain, snow, and extreme temperatures.

Outdoor WiFi antennas are typically made with materials that can withstand exposure to the elements. They are often made with UV-resistant plastic or fiberglass, which helps prevent damage from the sun’s rays. Additionally, they are sealed to protect the internal components from moisture, such as rain or snow. Some antennas are also designed to withstand extreme temperatures, ensuring they can function properly in both hot and cold climates.

When selecting a weather-resistant WiFi antenna, it’s important to check the manufacturer’s specifications to ensure it is suitable for your specific climate and weather conditions. Additionally, consider the installation location and make sure it is properly mounted and protected from direct exposure to the elements.

Consider the Size and Design

WiFi antennas come in different sizes and designs. Some antennas are small and compact, while others are larger and more conspicuous.

Consider the aesthetics of your space and choose an antenna that blends in well with your surroundings. Additionally, if you plan to install the antenna in a high-traffic area, you may want to choose a smaller and less obtrusive design to avoid any accidental damage.

Choose the Right Connector Type

WiFi antennas typically come with different connector types, such as RP-SMA, SMA, or N-type connectors. It’s important to choose an antenna with a connector that matches the one on your WiFi device.

If you’re not sure which connector type you need, you can refer to the user manual of your WiFi device or contact the manufacturer for assistance.

Consider the cable series and length

A coaxial cable is a type of electrical cable that has an inner conductor surrounded by a tubular insulating layer, which is then surrounded by a tubular conducting shield. The coaxial cable is used for transmitting high-frequency electrical signals with low loss.

There are several different series of coaxial cables, each with different specifications and applications. Some common series include RG-58, RG-59, RG303, LMR195, LMR240 and LMR400,etc. These cables have different characteristics in terms of impedance, attenuation, and frequency range.

The length of a coaxial cable refers to the distance between the two ends of the cable. The length of the cable can have an impact on the performance of the signal being transmitted. As the length of the cable increases, the signal can experience attenuation, which is a reduction in the strength of the signal. The longer the cable, the more attenuation the signal will experience.

The length of a coaxial cable can also impact the impedance of the cable. Impedance is a measure of the opposition to the flow of electrical current in a circuit. Coaxial cables are designed to have a specific impedance, usually 50 or 75 ohms. If the length of the cable is not properly matched to the impedance, there can be signal reflections and loss of signal quality.

In summary, the coax cable series refers to the different types of coaxial cables available with different specifications, while the length of a coaxial cable refers to the distance between the two ends of the cable, which can impact the performance of the signal being transmitted.

Consider compatibility with other devices

If you plan to connect your WiFi antenna to other devices, such as wireless routers, access points, or network adapters, it’s important to ensure compatibility. Check the specifications of your devices and choose an antenna that is compatible with the connectors and frequency bands they support.

Consider the Mounting Options

WiFi antennas can be mounted in different ways, depending on your specific needs.

Some antennas come with a magnetic base that allows you to attach them to metal surfaces, such as filing cabinets or metal shelves. Other antennas may come with mounting brackets that allow you to attach them to walls or poles.

Consider where you plan to install the antenna and choose a mounting option that suits your needs.

Consider Professional Installation

If you’re not comfortable installing the WiFi antenna yourself or if you have complex requirements, it may be worth considering professional installation.

A professional installer can assess your needs, recommend the right antenna, and ensure proper installation for optimal performance. This can save you time and effort while ensuring that your WiFi network is set up correctly.

Test and Adjust as Needed

Once you’ve installed your WiFi antenna, it’s important to test the signal strength and performance. Use a WiFi analyzer or signal strength meter to determine if the antenna is working effectively.

If you’re not satisfied with the results, you may need to adjust the position or orientation of the antenna. Experiment with different angles and placements to find the optimal setup for your specific environment.

Consider the cost

WiFi antennas come in a range of prices, so it’s important to consider your budget when choosing an antenna. However, keep in mind that cheaper antennas may not offer the same performance and durability as more expensive options.

It’s worth investing in a high-quality antenna that meets your needs and will last for a long time, rather than opting for a cheaper option that may need to be replaced sooner.

Choosing the right WiFi antenna involves more than just picking the one with the highest gain or the lowest price. It requires a thorough understanding of your specific needs, the installation environment, and the technical specifications of the antennas.

By considering the types of antennas, gain, polarization, beamwidth, environment, device compatibility, frequency band, future network requirements, and brand reliability, you can ensure that your wireless network performs optimally.

 Remember, the right antenna can significantly enhance your WiFi network’s range, strength, and overall performance, making it a critical component of your wireless infrastructure.
