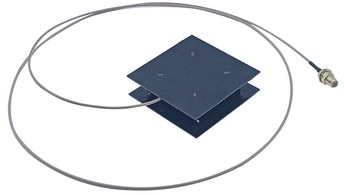

Hey there, let’s chat about something that might sound a bit technical but is actually super interesting and all around us: “Near-Field vs. Far-Field RFID Antennas“. I got fascinated by this topic when I started noticing how many things, from my credit card to the security tags in stores, use this technology. It turns out, the type of antenna they use makes a huge difference in how they work, and I wanted to break it down for you.

Near-field and far-field RFID antennas differ primarily in their communication method and read range. Near-field antennas use a magnetic, non-propagating field (inductive coupling) for short-range communication, typically up to 15-30 centimeters. Far-field antennas use a propagating electromagnetic wave (capacitive coupling or backscatter) for long-range communication, reaching up to 15 meters or more. The choice between them depends on the specific application’s need for range versus precision.

If you’ve ever wondered why you have to tap your credit card but a warehouse can scan a whole pallet of goods from a distance, you’re in the right place. We’re about to dive into the nitty-gritty of how each of these antenna types works and where they shine.

Near-Field Antennas: The Close-Talkers

Think of a near-field antenna as a “close-talker.” It’s designed for applications where you need to be up close and personal.

What They Are and How They Work

Near-field antennas operate using a principle called “inductive coupling“. Essentially, the antenna creates a magnetic field in its immediate vicinity. When an RFID tag enters this field, the magnetic energy induces an electric current in the tag’s own antenna, powering it up. The tag then uses this power to create a disturbance in the magnetic field, which the reader antenna picks up and decodes.

This all happens in what’s called the “near-field region.” which is generally within one wavelength of the antenna—roughly up to 30 centimeters (or about 12 inches). Because they rely on this magnetic field, they are excellent for creating a very defined and short-range read zone.

The Pros of Getting Close

Precision is Key: The biggest advantage is the ability to read specific tags without accidentally picking up others nearby. This is why you’ll find them in applications where accuracy is crucial.

Works with Tricky Materials: Near-field antennas are the champs when it comes to reading tags on items with high water content (like liquids) or on metal surfaces. Far-field waves tend to be absorbed by liquids or reflected by metal, but the magnetic field of a near-field antenna isn’t as affected.

No “Dead Spots”: Well-designed near-field antennas can provide a very uniform reading area, ensuring you don’t have spots where a tag just won’t read.

Far-Field Antennas: The Long-Distance Communicators

If near-field antennas are the close-talkers, far-field antennas are the town criers, shouting their message over long distances.

What They Are and How They Work

Far-field antennas operate quite differently. They use a propagating electromagnetic wave, which is a combination of electric and magnetic fields traveling together through space. This is known as “capacitive coupling” or propagation coupling.

The antenna sends out RF energy, and when this energy wave hits an RFID tag, it powers up the tag’s chip. The tag then reflects a portion of that energy back to the antenna, a process called “backscattering”. The reader antenna captures this reflected signal and decodes the information. Because this energy propagates outwards, far-field antennas can achieve a much longer read range.

The Perks of a Long Reach

Impressive Range: We’re talking distances from a few centimeters up to 9 meters (about 30 feet) or even more with active tags.

High-Volume Scanning: This long range makes them ideal for situations where you need to read many tags at once, without needing to be close to them. Think about a pallet of goods moving through a warehouse door.

Flexibility: There’s a wide variety of far-field antennas available, with different shapes, sizes, and polarizations (linear or circular) to suit various needs.

Head-to-Head: A Comparative Look

Real-World Applications: Where Do They Shine?

Understanding the theory is great, but let’s talk about where you’ll actually see these antennas in action.

Near-Field in Action: Precision is Key

I once worked on a project for a pharmaceutical company that needed to track individual vials of medication. This is a classic use case for near-field RFID. Why? Because far-field signals can be absorbed by liquids, making it difficult to get an accurate read. The focused magnetic field of a near-field antenna, however, isn’t affected by the liquid, allowing for precise tracking.

You’ll also find near-field antennas used in:

• Retail: For “smart shelves” that can tell you exactly what’s in stock.

• Libraries: To check out books and other media.
• Access Control: For secure entry systems where you need to be close to the reader.
• Contactless Payments: That tap-to-pay feature on your phone or credit card? That’s a form of near-field communication (NFC), which is a subset of RFID.
• Item-Level Tagging: Think tracking individual pharmaceuticals, library books, or jewelry. The small, precise read zone is perfect for this.

Far-Field in Action: Covering a Lot of Ground

Now, picture a massive warehouse with thousands of boxes stacked on shelves. It would be a nightmare to have to scan each box individually. This is where far-field antennas come to the rescue. By placing readers at strategic points, you can scan an entire pallet of goods as it moves through a doorway.

Other common applications for far-field antennas include:

• Supply Chain and Logistics: Tracking inventory on pallets and in shipping containers as they move through the supply chain.
• Retail Inventory Management: Quickly scanning entire shelves of products for real-time inventory counts.
• Asset Tracking: Keeping tabs on valuable equipment in a large facility.
• Race Timing: You know those mats you run over at the start and finish line of a race? Those are often equipped with far-field RFID antennas to read the tags on your race bib.

Making the Right Choice for You

So, how do you decide which type of antenna is right for your project? Here are a few questions to ask yourself:

What’s my required read range? If you need to read tags from more than a few inches away, you’ll likely need a far-field antenna.

What kind of items am I tracking? If you’re dealing with liquids, metals, or a dense collection of small items, a near-field antenna will probably give you more reliable results.

How important is precision? If you need to be absolutely sure you’re only reading one specific tag at a time, near-field is the way to go.

What’s my environment like? If you’re working in a large, open area, far-field antennas can be a great choice. For more confined spaces or applications that require indoor use, near-field might be a better fit.

Conclusion

At the end of the day, both near-field and far-field RFID antennas are incredibly useful technologies. They each have their own strengths and are suited for different tasks. By understanding the core differences in how they operate, you can make an informed decision and choose the antenna that will best serve your needs.

Do you have any experience with near-field or far-field RFID? I’d love to hear about your projects and any questions you might have in the comments below.
