Skip to content As a professional antenna manufacturer, we offer clear guides to help you install, test, and design various antennas quickly and efficiently.
At Sanny Telecom, we are dedicated to delivering not only high-performance antennas but also a comprehensive support experience that ensures your installation and usage are seamless and effective. As a leading professional antenna manufacturer, we simplify the entire process—from design and manufacturing to testing and installation.
Our expert team meticulously designs and engineers each antenna to meet the highest standards of performance and reliability. We employ advanced design techniques and cutting-edge simulation tools to optimize antenna parameters such as radiation patterns, axial ratio, isolation, VSWR, and etc, ensuring superior signal quality and connectivity.
To guarantee the quality and performance of every antenna, we conduct rigorous electrical testing in our state-of-the-art laboratories. This includes detailed measurements of radiation patterns to verify directional coverage, axial ratio testing for circular polarization accuracy, and VSWR analysis to ensure minimal signal reflection and maximum power transfer. Our commitment to thorough testing means you receive antennas that perform exactly as specified, providing exceptional connectivity in real-world conditions.
For your convenience, we provide clear, step-by-step written and video tutorials that guide you through every stage of antenna installation. Whether you’re mounting your antenna on a mast or a wall, our easy-to-follow instructions help you achieve a secure and optimal setup quickly and hassle-free. Whether you’re a first-time installer or an experienced professional, our resources empower you to get connected with confidence.
Additionally, for those interested in the antenna manufacturing process, we offer insights into how antennas are made—from initial design concepts and material selection to precision fabrication and quality assurance. Our transparency and expertise make Sanny Telecom a trusted partner not only for purchasing antennas but also for understanding the technology behind them.
Choose Sanny Telecom for antennas that combine cutting-edge design, rigorous testing, and user-friendly installation support. Experience exceptional connectivity backed by our dedication to quality, innovation, and customer success.
We’re here to make installing your antenna simple and efficient with our easy-to-follow guides, tailored specifically for omni-directional antennas, panel antennas, and parabolic dish antennas. Our step-by-step instructions cover three key stages: preparation, mounting, and angle adjustment for optimal signal quality. Whether you’re installing an omni antenna for 360-degree coverage, a panel antenna for directional reliability, or a parabolic dish for high-gain precision, we’ve got you covered.
Our guides include a list of essential tools—such as wrenches, screwdrivers, leveling tools, and waterproof tape—and provide tips specific to each antenna type. We also address important factors like line of sight, wind resistance, and the best mounting practices to ensure maximum performance in any environment.
Ready to get started? Check out our sample guides online and see how easy it is to set up your high-performance antenna system! (Note: These materials are designed specifically for our advanced antenna solutions.)

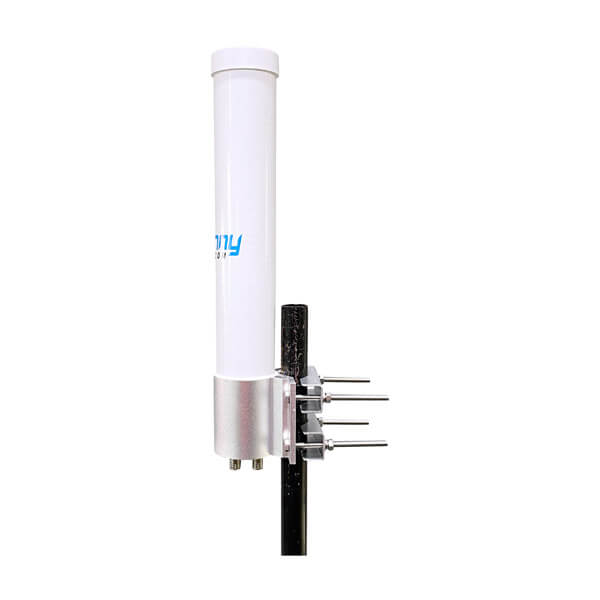

Just received your omni antennas? This guide shows you how to easily install them on the mast step by step.

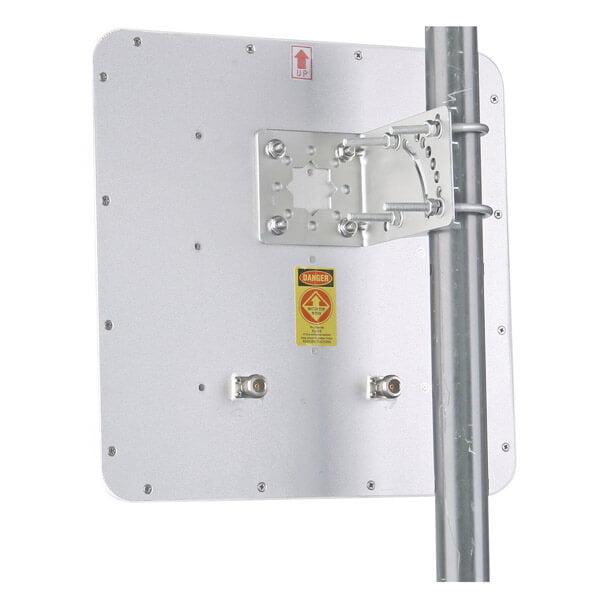

Just received your panel antennas? This guide shows you how to easily install them on the mast step by step.
Just received your parabolic dish antennas? This guide shows you how to easily install them on the mast step by step.
Installing antennas properly and easily is crucial for ensuring optimal performance. That’s why we’ve created a series of simple, step-by-step videos to guide you through the installation process based on the type of antenna and mounting bracket you’re using.
From start to finish, these videos are designed to make installation straightforward and hassle-free. To help you find exactly what you need, they’re organized by antenna and bracket type, so you can get the right guidance quickly.
Click the link below to watch our installation videos and get started!
For use with Sanny Telecom Models: STD5G30M2-PRO, STD6G30M2-PRO, STD5G34M2-PRO, STD6G34M2-PRO, STD4971G34M2-PRO, etc.
From the moment you receive your Dish antenna, this video will guide you step-by-step to successfully install it on a mast.
Step 1 Place the Dish on a flat surface and attach the Mounting Bracket to the Dish using M10 fasteners.
Step 2 Attach the horn to the dish using 4x M4 Fasteners.
Step 3 Install the antenna on a vertical pole with the tilt adjustment rod at the bottom.
Step 4 Azimuth alignment is achieved by rotating the antenna on the pole. Once alignment is done, lock the nuts on the U-bolts.
Step 5 Elevation tilt alignment (up to +/- 15 degrees) can be done using the tilt adjustment rod.Once the antenna is at the required tilt angle, lock the M16 nuts on the adjustment rod.
For use with Sanny Telecom Models: STD5G23M2, STD6G23M2, STD5G25M2, STD6G25M2, etc.
For use with Sanny Telecom Models: STD5G30M2, STD5G30M2-2PK, STD6G30M2, STD6G30M2-2PK, etc.
For use with Sanny Telecom Models: ST-SH6G11B90M2-HP,ST-SH6G14B60M2-HP, ST-SH6G16B45M2-HP, ST-SH6G20B30M2-HP
From the moment you receive your horn antenna, this video will guide you step-by-step to successfully install it on a mast.
Step 1 Check the quantity of the parts and accessories;
Step 2 Assemble Mounting Bracket as shown;
Step 3 Attach the Mounting Bracket to the Horn Antenna;
Step 4 Insert the M8x85 Bolt to the Middle Clamp of Mount Bracket:
Step 5 Attach the Mounting Bracket to the Mast;
Step 6 Adjust the mounting angle of the antenna;
Step 7 Tighten all the washers and nuts
From the moment you receive your Panel antenna, this video will guide you step-by-step to successfully install it on a mast.
Step 1 Check the quantity of the parts and accessories;
Step 2 Fasten the L-Bracket to the four standoffs of antenna back-plate with the flange nut;
Step 3 Attach the L Bracket to the mast and attach the U-Bolts around the mast and secure with two clamps
Step 4 Adjust the mounting angle of the antenna;
Step 5 Tighten all the washers and nuts
For use with Sanny Telecom Models: STP24G18HVM2, STP2458G19XM2, STP2472G19HVM6
For use with Sanny Telecom antenna series: RFID antennas, panel antennas, etc.
From the moment you receive your Panel/RFID antenna and enclosure, this video will guide you step-by-step to successfully install it on a mast.
Step 1 Check the quantity of the parts and accessories;
Step 2 Attached the enclosure to the antenna back-plate with nuts and washers;
Step 3 Fasten the L-Bracket to the four standoffs of the enclosure with the Hex nuts;
Step 4 Attach the L-bracket and U-Bolts around the mast and secure with two clamps ;
Step 5 Adjust the mounting angle of the antenna;
Step 6 Tighten all the washers and nuts
From the moment you receive your RFID antenna, this video will guide you step-by-step to successfully install it on a mast.
Step 1 Check the quantity of the parts and accessories;
Step 2 Fasten the L-Bracket to the four standoffs of antenna back-plate with the flange nut;
Step 3 Attach the L Bracket to the mast and attach the U-Bolts around the mast and secure with two clamps
Step 4 Adjust the mounting angle of the antenna;
Step 5 Tighten all the washers and nuts
For use with Sanny Telecom Models: STR8G8C, STR8G8L, STR9G8C, STR9G8L
For use with Sanny Telecom Models: STR8G12C, STR8G12L, STR9G12C, STR9G12L
Ensuring your antenna performs optimally in the real world is just as important as its initial design. While HFSS simulations provide a solid foundation, the actual antenna prototype can behave differently due to material variations and return loss. That’s why thorough electrical specification testing in a microwave anechoic chamber is essential.
This testing allows you to accurately measure and tune your antenna’s performance, bridging the gap between design and reality. By validating and adjusting your prototype before mass production, you ensure the highest quality and reliability in the final product.
To help you through this critical process, we’ve created detailed step-by-step videos demonstrating how to properly test and tune antennas in a microwave anechoic chamber. Watch the videos below to learn how to achieve the best antenna performance possible.
The electrical specifications can be tested in the anechoic chamber such as gain, polarization, half-power beamwidth, F/B ratio, axial ratio, etc.
Testing how well an antenna works in a microwave anechoic chamber is a step-by-step process. It usually includes checking important features like the antenna’s radiation pattern, gain, polarization, and standing wave ratio (VSWR). Here’s a simple breakdown of the process in five main steps:
Step 1: Prepare the Equipment Check all tools and carefully place the antenna on the rotating table.
Step 2: Set Up the Room Use special materials to block signal reflections and keep the environment steady.
Step 3: Run the Tests Rotate the antenna and measure signal strength, gain, polarization, and signal matching.
Step 4: Analyze Results Look at the data, write a report, and fix any issues if needed.
Step 5: Follow Safety Rules Keep the room quiet, manage cables well, and stay safe around high-frequency signals.
