It’s truly wild when you stop and think about it. Remember those old movies from the 80s and 90s, where a character would dramatically pull a long metal stick out of a phone the size of a shoebox? That’s a world away from the seamless glass and metal devices we depend on today.

But how did we get from that clunky past to our hyper-connected present? It’s a story I find absolutely fascinating, and a massive part of it is the incredible, and often completely overlooked, “evolution of antenna technology”. I’ve spent years digging into the invisible magic that makes our world work, and I can tell you, the antenna is the true unsung hero of the mobile revolution.

The evolution of antenna technology is a direct response to the demands of each mobile generation. 1G used simple, external monopole antennas for analog voice on 800 MHz bands. 2G’s digital standards like GSM and CDMA prompted the move to compact, internal PIFA antennas to fit smaller phones. 3G’s UMTS standard introduced antenna diversity for better data reliability. 4G LTE required multiple antennas for MIMO technology to boost data speeds. 5G and 5G-Advanced now use sophisticated phased arrays and Massive MIMO for intelligent beamforming on Sub-6 GHz and high-frequency millimeter waves.

If you’ve ever been curious about the journey from that awkward pull-out stick to the mind-bendingly complex systems in our phones today, you’re in for a treat. Let’s trace the path of this essential technology, generation by generation.

The Unsung Heroes of Our Connected World

Before we rocket through the decades, let’s get on the same page about what an antenna ‘is’. At its core, an antenna is a transducer. It’s a bridge between two worlds. It takes the guided electrical signals flowing through your phone’s circuitry and converts them into unguided electromagnetic waves (or radio waves) that travel through the air. It also does the exact reverse, capturing those waves and turning them back into electrical signals.

Simply put, it’s the mouth and ears of every wireless device. Without it, your phone is just a very expensive paperweight.

The story of the antenna is a story of fighting against physics. It’s a tale of miniaturization, battling interference, and a relentless quest for more bandwidth. Each new generation of mobile technology has thrown down a new gauntlet, forcing engineers to perform what can only be described as miracles of engineering to make it all work.

The 1G Era: Analog Voice and the Big Stick

Let’s teleport back to the 1980s. The first generation of mobile networks, or 1G, was a monumental achievement with a singular goal: making voice calls without a physical cord.

Core Technology: The dominant standard in North America was “AMPS (Advanced Mobile Phone System)”. It was purely analog, using Frequency Modulation (FM) for voice calls, much like a radio station. This meant calls were prone to static, eavesdropping, and had no security.

Operating Frequencies: 1G networks operated in the “800 MHz” band. The laws of physics dictate that the antenna’s size is inversely proportional to the frequency. Lower frequencies mean longer wavelengths, which in turn require physically larger antennas to be efficient.

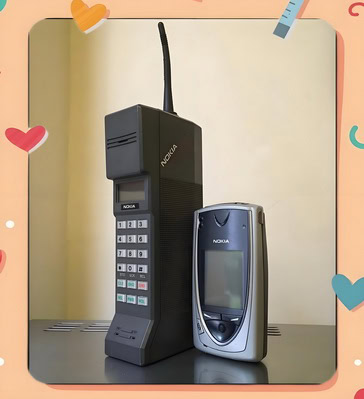

The Antenna’s Role: The External Monopole: This physics lesson is why every 1G “brick phone” had its most prominent feature: a long, retractable metal stick. This was a “quarter-wave monopole antenna”. You had to pull it out to its full length (which corresponded to one-quarter of the radio wave’s wavelength) to get the best reception. These were simple, omnidirectional antennas—they sprayed the signal out in all directions at once, like a bare lightbulb. The goal wasn’t precision or data speed; it was simply making a connection.

The 2G & 3G Revolution: Going Digital and Hiding Away

The 1990s and early 2000s marked a seismic shift. The move to 2G meant going digital, which brought clearer calls, better security, and a revolutionary new feature: text messaging (SMS). This is when phones started to shrink from “car phones” to devices that could actually fit in your pocket. That big external antenna? It had to disappear.

2G – The Digital Dawn and the Internal Antenna

Core Technologies: This era saw a split in standards. Much of the world adopted “GSM (Global System for Mobiles)”, which used a mix of Time Division and Frequency Division Multiple Access (TDMA/FDMA). In North America, “CDMA (Code Division Multiple Access)” also became a major player.

Operating Frequencies: These digital networks operated on a wider range of bands, including “850 MHz, 900 MHz, 1800 MHz, and 1900 MHz”. The need to support these different bands for international roaming created a new headache for antenna designers.

The Antenna’s Leap: The PIFA: The hero of this era was the “Planar Inverted-F Antenna (PIFA)”. This brilliant design was essentially a flat metal strip, precisely shaped and folded, that could be etched directly onto a small circuit board and mounted inside the phone’s plastic case. The PIFA was a game-changer. It allowed for much smaller phone designs and could be engineered to be “multi-band,” meaning one single antenna could effectively handle the different frequencies needed for roaming.

3G – The First Taste of Mobile Data

As we entered the new millennium, 3G promised to deliver on the dream of the mobile internet.

Core Technologies:  The key standard here was “UMTS (Universal Mobile Telecommunications System)”, which evolved into “HSPA (High-Speed Packet Access)”, often called 3.5G. This technology was designed from the ground up to handle packet-switched data more efficiently than 2G ever could.

Operating Frequencies: 3G networks continued to use existing 2G bands but added new ones, most notably the “2100 MHz” band, to provide more capacity for data.

The Antenna’s Enhancement: Antenna Diversity: Data connections are far less forgiving of signal degradation than voice calls. A few dropped bits can corrupt a file or stall a webpage. To improve reliability, engineers introduced “antenna diversity”. This meant placing a second, separate receiver antenna inside the phone. The phone’s chipset would constantly monitor the signal from both antennas and intelligently switch to whichever one was providing a clearer, stronger signal at that exact moment. It was a clever way to combat signal fading and the “death grip” issue where your hand might be blocking the primary antenna.

4G/LTE: The Age of True Mobile Broadband

When 4G LTE arrived around 2010, the mission statement was clear: speed. We wanted to stream high-definition video, play online games, and use data-hungry apps seamlessly. This required a quantum leap in network efficiency, and the antenna was once again at the center of the innovation.

Core Technologies: The global standard for 4G is “LTE (Long-Term Evolution)“, and its more capable successor, “LTE-Advanced“. These standards, developed by the 3GPP consortium, are based on “OFDMA (Orthogonal Frequency-Division Multiple Access)“, which is incredibly efficient at handling large amounts of data in wireless environments.

Operating Frequencies: The 4G era brought an explosion of frequency bands, from low-frequency bands like “700 MHz“ (excellent for covering wide rural areas and penetrating buildings) to high-frequency bands like “2.6 GHz” (perfect for providing high capacity in dense urban areas).

The Antenna’s Transformation: MIMO: The signature technology of 4G is “MIMO“, which stands for ”Multiple-Input, Multiple-Output“. This was a fundamental change in how we use the airwaves.

My favorite way to explain it is with a traffic analogy. Imagine a single-lane road where cars can only go one after another. That’s like a traditional antenna system. Now, imagine a four-lane superhighway where four cars can travel side-by-side, at the same time. You’ve just quadrupled your throughput.

MIMO does this for data. It uses multiple antennas on both the cell tower and in your phone (e.g., 2×2 or 4×4 MIMO) to transmit and receive multiple independent streams of data simultaneously, all on the very same frequency channel. This technique, called ”spatial multiplexing”, is what allowed 4G to blow past 3G speeds. The challenge? Cramming two, and later four, distinct antennas into a super-slim phone and ensuring they didn’t interfere with each other—a monumental feat of engineering.

5G & 5G-Advanced: Building an Intelligent Future

And that brings us to today. 5G is not just “faster 4G.” It’s a new type of network designed for three key things: extreme broadband speeds, ultra-reliable low-latency communication, and connecting a massive number of devices (the Internet of Things). To achieve these ambitious goals, antennas had to evolve from being passive components to being intelligent, active systems.

Core Technology:  The global standard is “5G NR (New Radio)”, designed to meet the “IMT-2020“ requirements laid out by the International Telecommunication Union (ITU).

The Two Faces of 5G Spectrum

5G operates across a much wider range of frequencies, which we split into two main categories:

1.  Frequency Range 1 (FR1) or “Sub-6 GHz“: This includes bands from 600 MHz up to 6 GHz. These are the workhorse bands of 5G, providing excellent coverage that is comparable to 4G, but with much greater efficiency and speed.

2.  Frequency Range 2 (FR2) or “Millimeter Wave (mmWave)“: This is the high-frequency spectrum, from ”24 GHz to over 52 GHz“. These waves can carry an astonishing amount of data, enabling multi-gigabit speeds. The trade-off is that they have a very short range and are easily blocked by walls, foliage, and even your own hand.

The Antenna’s Intelligence: Massive MIMO and Beamforming

To make 5G work, especially in those higher bands, two key antenna technologies are critical:

Massive MIMO: This takes the 4G MIMO concept and puts it on steroids. Instead of just a handful of antennas, 5G base stations deploy huge arrays containing 32, 64, 128, or even more individually controllable antenna elements.

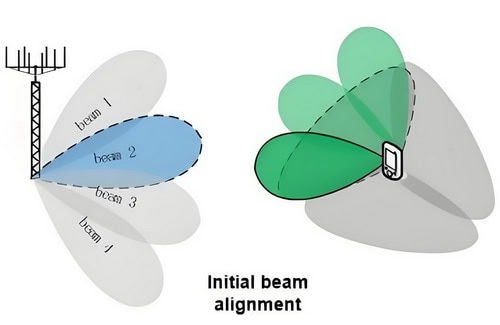

Beamforming: This is the intelligence that makes Massive MIMO work. Instead of radiating a signal in all directions like a lightbulb, the antenna array can use sophisticated signal processing to focus the radio energy into a narrow, concentrated “beam” pointed directly at your device. It’s like switching from a floodlight to a laser pointer. This provides a much stronger, faster signal for the user and dramatically reduces interference for everyone else. It is the key technology that overcomes the immense signal loss (path loss) of mmWave frequencies.

Inside a 5G mmWave phone, you’ll find multiple “phased antenna arrays“. Because the wavelengths are so tiny at these frequencies, a grid of miniature antennas can be packed into a very small module. These arrays work together to create and steer their own beams, connecting with the cell tower’s beam to maintain a stable link, even as you move.

What’s Next? 5G-Advanced (3GPP Release 18 and Beyond)

The evolution isn’t over. The next major phase, dubbed ”5G-Advanced”, is already being standardized. This is less about raw speed and more about making the network smarter, more capable, and more efficient. Key focus areas include:

AI/ML Integration: Using artificial intelligence and machine learning to make beam management even more precise, predict user movement, and optimize network resources in real-time.

XR (Extended Reality) Enhancements: Further reducing latency and improving reliability to support the demanding requirements of immersive augmented reality (AR) and virtual reality (VR) applications.

Reconfigurable Intelligent Surfaces (RIS): Research is underway on RIS, which are essentially smart surfaces or panels that can be placed on buildings to passively reflect and steer radio waves around obstacles, filling in coverage gaps in a low-cost, low-energy way.

Conclusion

From a simple, passive metal stick to today’s invisible, AI-assisted arrays that steer data with surgical precision, the evolution of antenna technology has been nothing short of spectacular. It perfectly mirrors our own evolving demands for how we connect with the world. These tiny, complex components are a powerful testament to human ingenuity.

It really makes you wonder, doesn’t it? As we barrel towards a future that includes 6G and beyond, what other invisible miracles will our antennas need to perform to power a world of holographic telepresence and a truly connected global consciousness?
