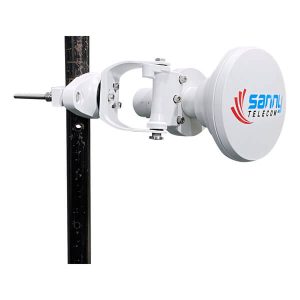

4.9-6.5GHz Symmetrical Horn Antennas

  1. Home
  2. Products
  3. 4.9-6.5GHz Symmetrical Horn Antennas
ST-SH6G11B90M2-HP ST-SH6G11B90M2-HP ST-SH6G14B60M2-HP ST-SH6G14B60M2-HP ST-SH6G16B45M2-HP ST-SH6G16B45M2-HP ST-SH6G20B30M2-HP ST-SH6G20B30M2-HP ST-SH6G20B30M2-HP-Side
Sanny Telecom Symmetrical Horn antennas are designed with broadband, precise beamwidth, high isolation & F/B ratio. They are ideal next-generation sector antennas to meet the increasing high-density demands. Products feature extremely compact sizes and exquisite designs. The whole unit was fully preassembled at the factory to facilitate the installation and save labor costs. All of them have been optimized for use with MIMO radios like Ubiquiti Networks RocketM5®, Mikrotik BaseBox® 5, or Cambium ePMP™ series radios. They also support the new breed of 6.4GHz radios. With the front protection radome, the horn antenna has a long service life for all-weather operation.
Get a Quote

Details About 4.9-6.5GHz Symmetrical Horn Antennas

Features

  • Compact size and exquisite design
  • Extremely High F/B ratio, No side lobes
  • Wide Multi-Band Coverage, 4900-6500 MHz
  • Wide adjustable mounting kits
  • Precise beamwidth, ranging from 30 to 90 degrees with optional models
  • Includes a protection radome for long service life and all-weather operation
  • Includes Optional Radio Mounting Brackets & (2) RP-SMA Cables

Applications

  • 5 GHz 802.11a/n
  • 6.4 GHz Band applications
  • WiFi and WLAN Systems
  • Ubiquiti Networks RocketM5®
  • Mikrotik BaseBox® 5
  • Cambium ePMP2000, ePMP3000L
  • Mimosa C5c
  • 2×2 MIMO applications
  • Wireless Bridges and Backhaul

Available Model Options

Model Frequency (MHz) Gain (dBi) Polarization HW/VW (°) Connector Dimensions (mm) Datasheet
ST-SH6G11B90M2-HP 4900-6500 10±1 H+V /±45° 90°±5° 2xN-female Φ151×200 Download
ST-SH6G14B60M2-HP 4900-6500 14±1 H+V /±45° 60°±5° 2xN-female Φ142×222 Download
ST-SH6G16B45M2-HP 4900-6500 16±1 H+V /±45° 45°±2° 2xN-female Φ155×245 Download
ST-SH6G20B30M2-HP 4900-6500 19±1 H+V /±45° 30°±2° 2xN-female Φ221×330 Download
